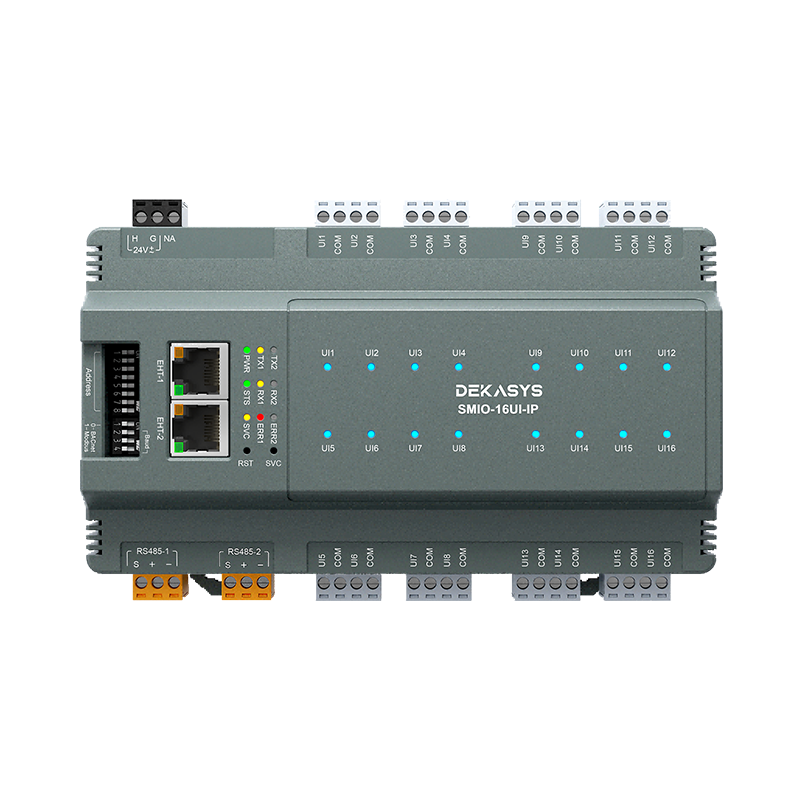

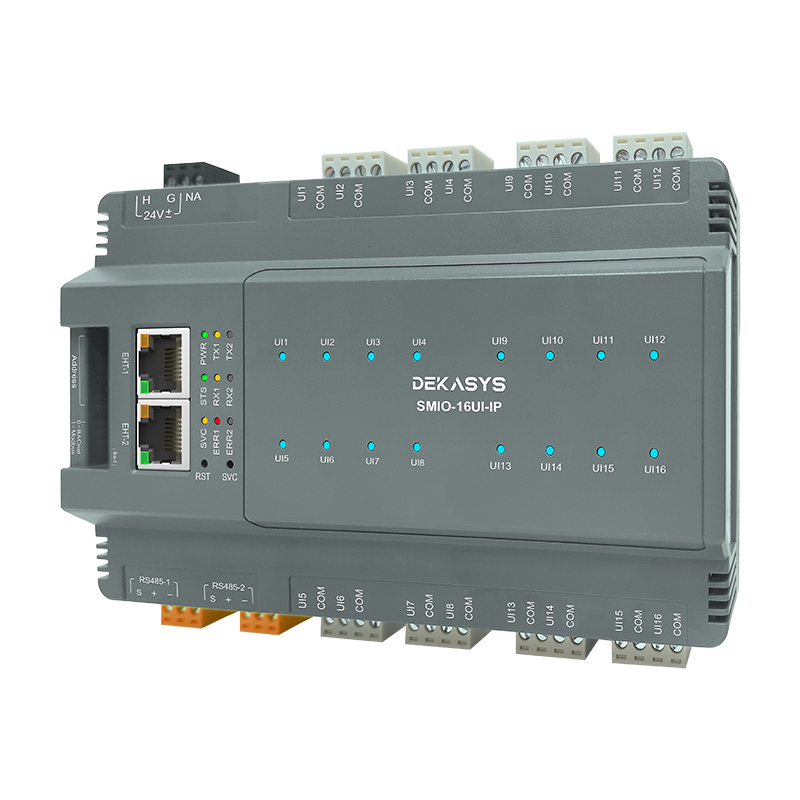

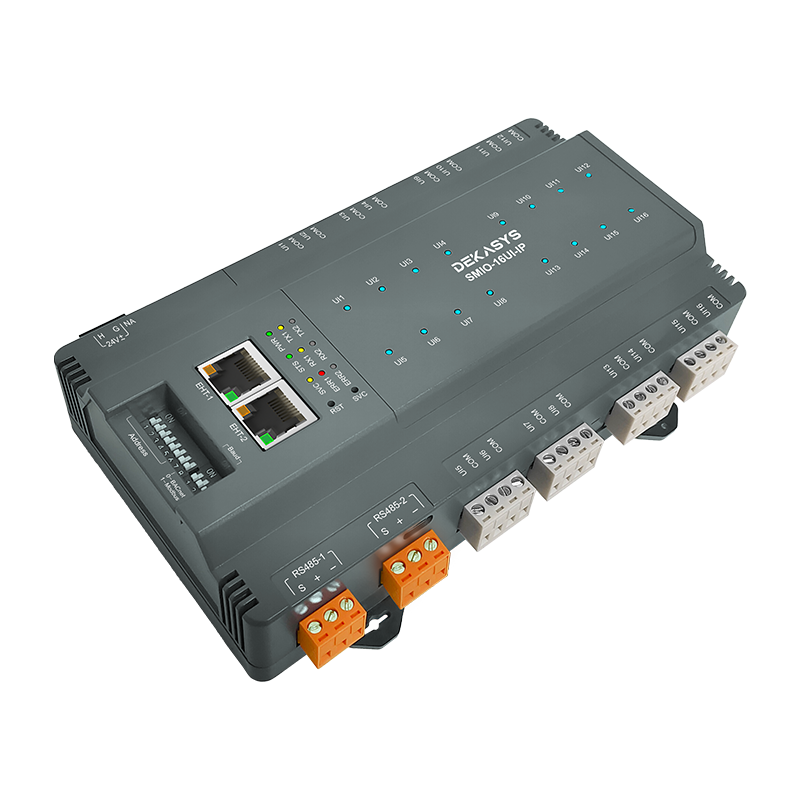

DEKASYS 16-point Remote IO module SMIO-16UI-IP
RS485*2 |
UI*16 |
2 Ethernet port for daisy chain connection |
Good Price-Performance |
ARM Cortex 32 Bit MCU |
Baud rate and address DIP switch |
Industry-Standard Protocols
The controller is compatible with BACnet MS/TP, BACnet IP, Modbus RTU, and Modbus TCP protocols, ensuring smooth integration with most building automation systems.
Online Firmware Updates
The controller can be upgraded and configured via USB.
Hardware Configuration
The address and baud rate can be quickly set using the DIP switch, simplifying installation and setup.
|
Dimension |
193.2x107x51.2mm(±0.5mm) |
|
Casing Material |
UL 94 ABS + PC |
|
Weight |
TBA |
|
Power Supply |
24V AC +20%/-15% or 24V DC ±5% |
|
Consumption |
<10W |
|
Current Rating |
1A at 24VAC/VDC |
|
Operating Temp |
32 to 131°F (0 to 55 °C) |
|
Storage Temp. |
-4 to 185 °F (-20 to 85 °C) |
|
Operating Humidity |
0% to 95% relative humidity non-condensing |
|
IP Waterproof |
IP20 |
|
12-bits with PGA |
|
|
Voltage |
0 - 10V (±0.01V), 0 - 5V (± 0.01V) |
|
Current |
4 - 20mA (±0.01mA), 0 - 20mA (±0.01mA) |
|
Resistance |
0 - 30K , 0 - 10K, 0 - 1.5K |
|
Thermister |
NTC : 10K TYPE 2/3, 3K, 20K (±0.1 ℃) |
|
Sensor |
RTD : 1K Balco, 1K Platinum (±0.2 ℃) |
|
Certifications |
CE, FCC, BTL |
-
Simplicity and Efficiency
DEKASYS IO modules are characterized by their ease of use and quick installation capabilities. With standardized interfaces and preset functions, they simplify device connections and reduce the time and cost associated with deployment.
-
Flexible Integration
DEKASYS IO systems are designed to be modular and are compatible with a range of industrial protocols such as BACnet, Modbus, and MQTT. This flexibility ensures they can connect effortlessly with a variety of equipment and systems, catering to the varied demands of customers.
-
Unlimited Expansion
DEKASYS IO modules are highly scalable, offering flexible expansion and upgrade options to meet evolving customer requirements. They are capable of supporting individual modules as well as large-scale systems, making them a reliable choice for digital transformation initiatives.
-
Wide coverage, multiple scenarios
DEKASYS IO systems are widely used in industrial automation, building automation, energy management, transportation systems, environmental monitoring and other fields. Whether in high-precision electronics manufacturing or energy management in complex environments, DEKASYS provides stable and efficient support.
-
Intelligent diagnosis, efficient operation and maintenance
DEKASYS IO module has intelligent diagnostic function, which can monitor equipment status in real time, automatically identify faults and issue early warnings. This not only reduces equipment downtime, but also reduces maintenance costs, ensuring continuity and stability in the production process.
-
High reliability, stable operation
DEKASYS IO modules are industrial-grade designed and subjected to rigorous quality and reliability testing to operate stably in harsh industrial environments. Its redundant design further improves system reliability and ensures uninterrupted operation of critical equipment.
