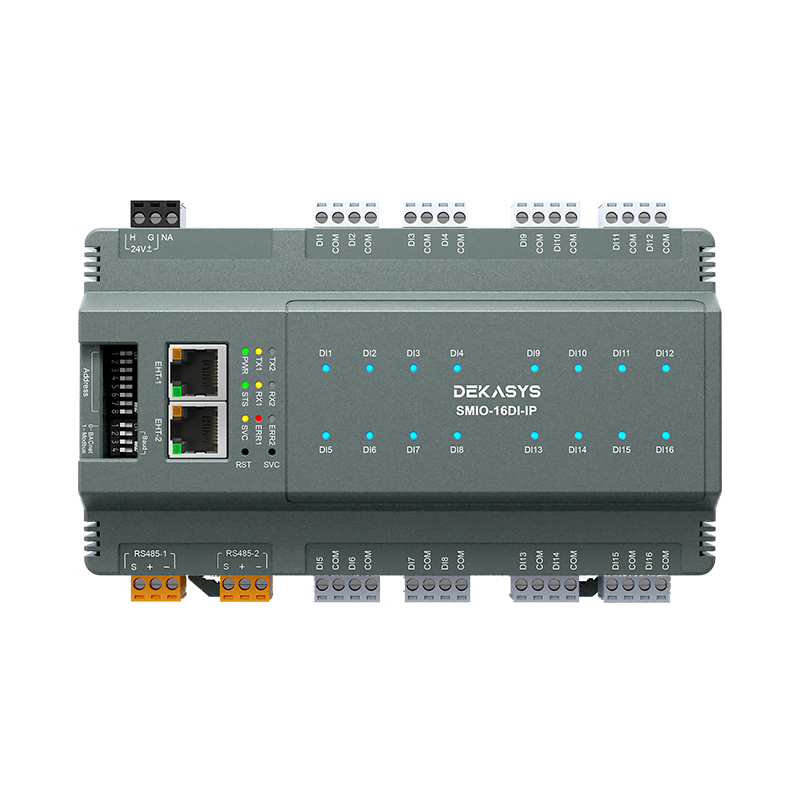

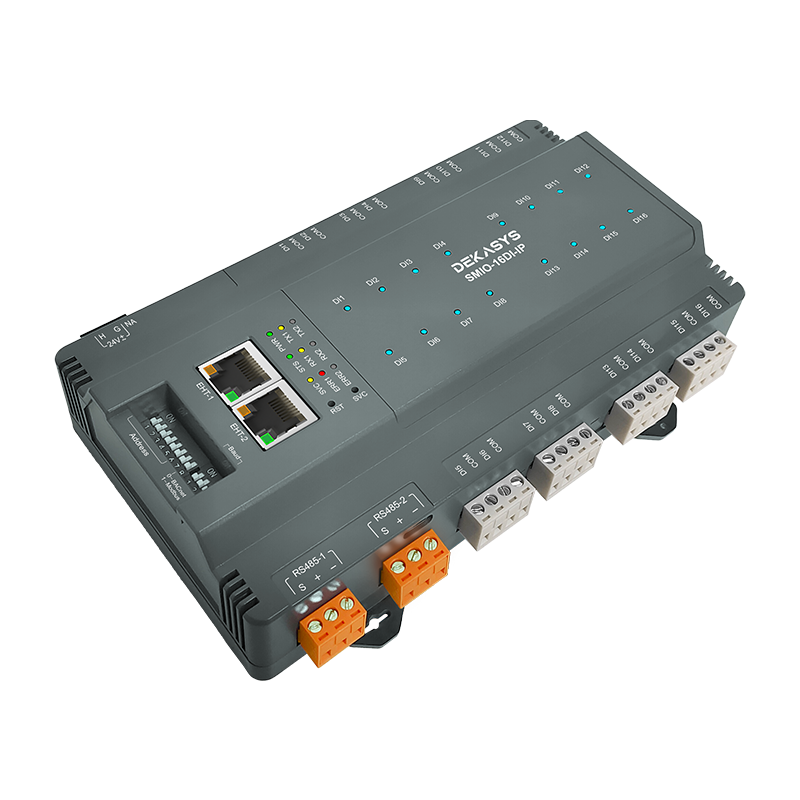

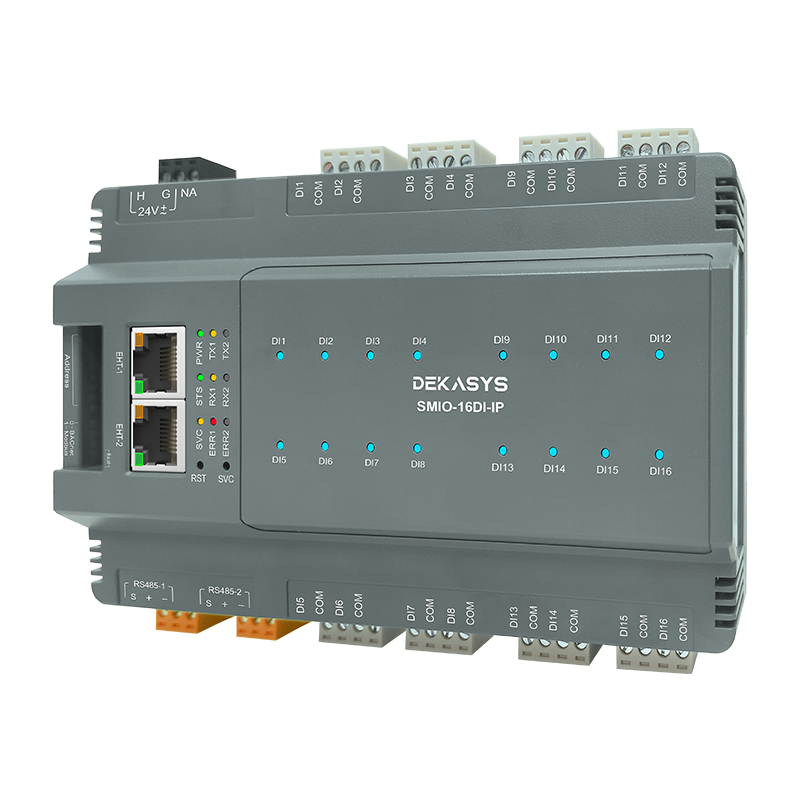

DEKASYS 16-point Remote IO module SMIO-16DI-IP
|
RS485*2 |
UI*16 |
2 Ethernet port for daisy chain connection |
|
Good Price-Performance |
ARM Cortex 32 Bit MCU |
Baud rate and address DIP switch |
Compatible Protocols
The controller supports BACnet MS/TP, BACnet IP, Modbus RTU, and Modbus TCP, making it suitable for most building automation applications.
Firmware Updates
The controller can be upgraded and configured via USB.
Quick Setup
The DIP switch enables rapid configuration of the address and baud rate, ensuring a streamlined installation.
|
Dimension |
193.2x107x51.2mm(±0.5mm) |
|
Casing Material |
UL 94 ABS + PC |
|
Weight |
TBA |
|
Power Supply |
24V AC +20%/-15% or 24V DC ±5% |
|
Consumption |
<10W |
|
Current Rating |
1A at 24VAC/VDC |
|
Operating Temp |
32 to 131°F (0 to 55 °C) |
|
Storage Temp |
-4 to 185 °F (-20 to 85 °C) |
|
Operating Humidity : |
0% to 95% relative humidity non-condensing |
|
IP Waterproof |
IP20 |
|
Limit |
ON State < 2000Ω，OFF State > 20000Ω |
|
Type |
Dry Contact，Isolated 3.7KV |
|
Certifications |
CE, FCC, BTL |
-
Intuitive and Efficient Design
DEKASYS IO modules are designed to be user-friendly, with quick installation and configuration capabilities. Standardized interfaces and preset functions simplify device connections, enabling non-professionals to deployments and reducing overall costs.
-
Modular and Versatile
DEKASYS IO systems adopt a modular design and support multiple industrial protocols, including BACnet, Modbus, and MQTT. This ensures smooth integration with various equipment and systems, satisfying the diverse needs of customers.
-
Scalable and Adaptable
DEKASYS IO modules are highly scalable and can be flexibly combined and upgraded based on customer needs. They are suitable for single modules, large-scale systems, simple applications, and complex scenarios, providing continuous support for enterprises' digital transformation.
